Electrical Instruments>>>Tools
Brand Name TY
DIY Supplies ELECTRICAL
Certification CE,RoHS
Origin CN(Origin)
Model Number HT118A/HT118C/HT118D

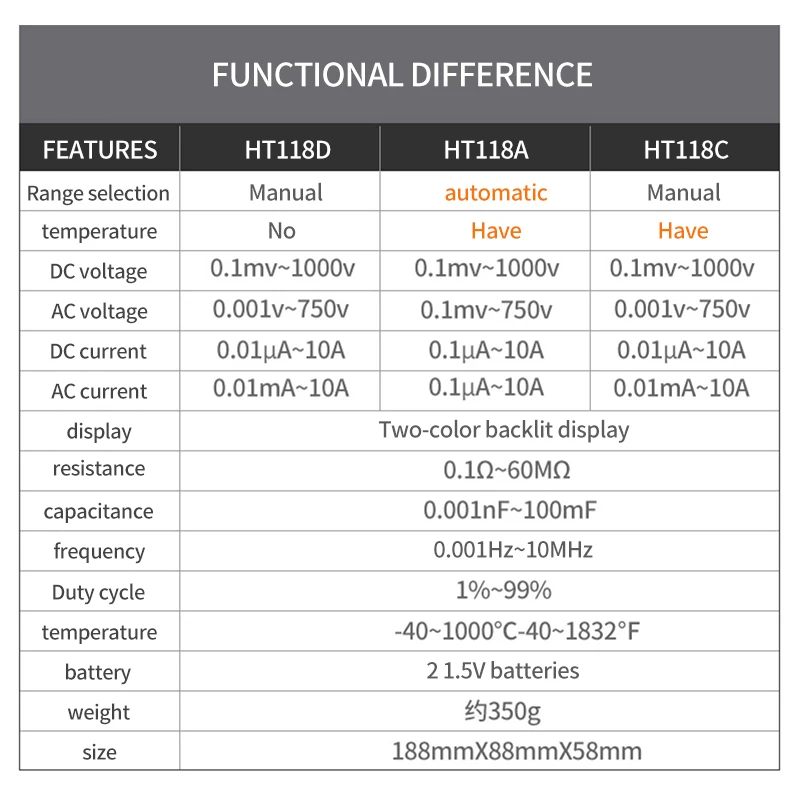

AC Current 0.01mA~10A
Is Smart Device Yes
AC Voltage 0.001V~750V
Measuring Resistance Range 0.1 Ohm~60M Ohm
Operating Mode manual control
Measuring Inductance Range /
Display Type Digital display
DC Current 0.01uA~10A
DC Voltage 0.1mV~1000V
Measuring Capacitance Range 0.001nF~100mF

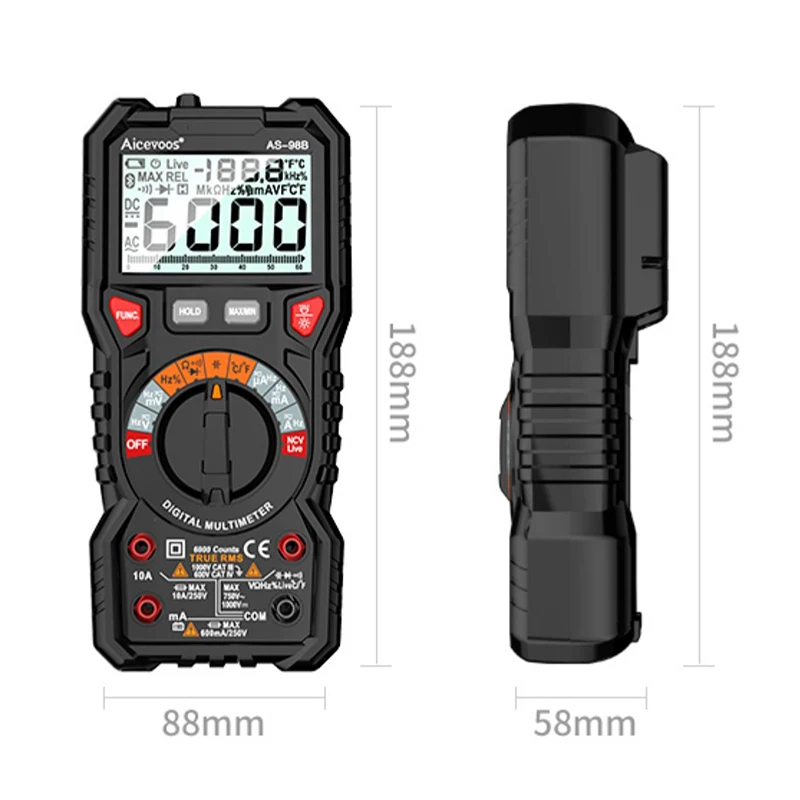

Dimensions 188mm*88mm*58mm
Operating Temperature 0 - 40 ℃
Display LCD two-color backlight
Frequency 0.001Hz~10MHz
Duty cycle 1%~99%
Temperature measurement range -40C~1000C -40F~1832F
Battery 2*1.5V AAA
weight Abou 350g

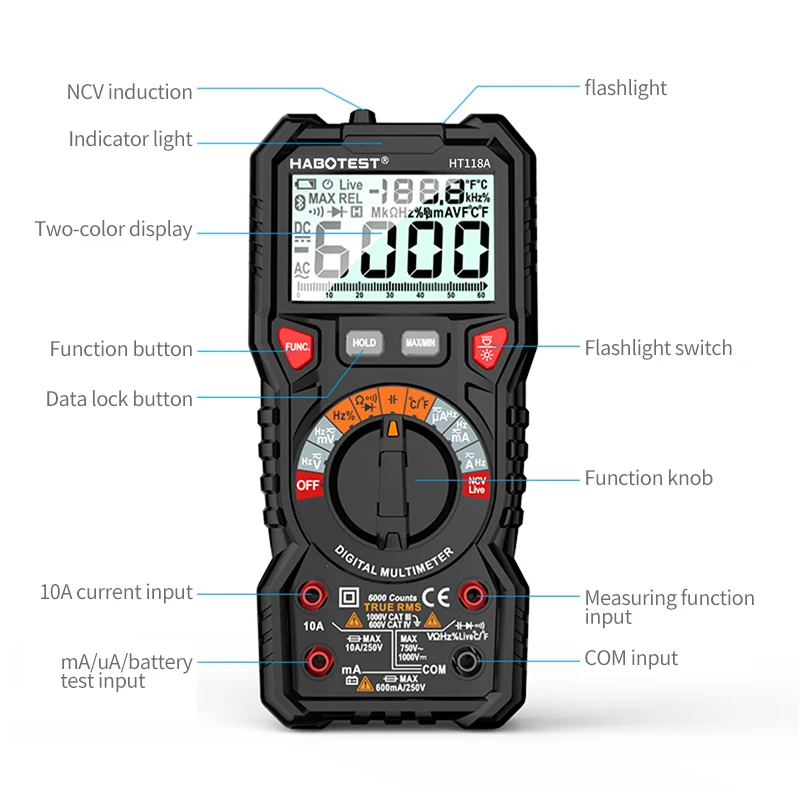

Special feature 1 Two-color screen (high voltage prompt)
Special feature 2 Probe jack indicator (how to insert the probe)
Special feature 3 NCV indicator (discriminate zero fire line)
Compared Better than RM113D/UT89XD
Standard configuration Multimeter / Multimeter Probe / Instruction Manual






Color

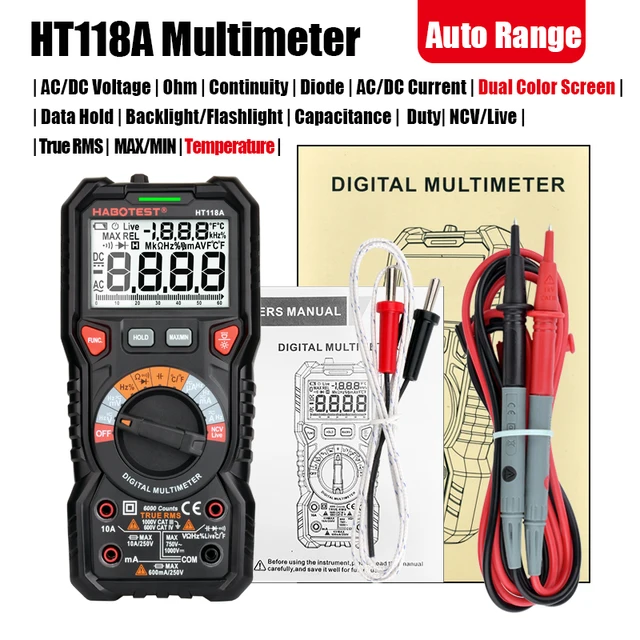

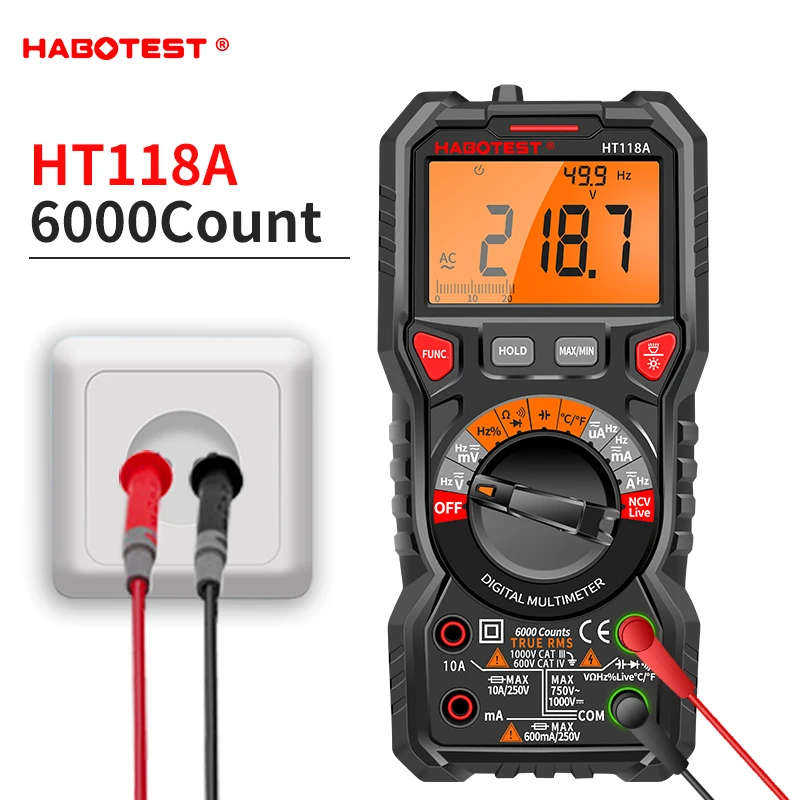

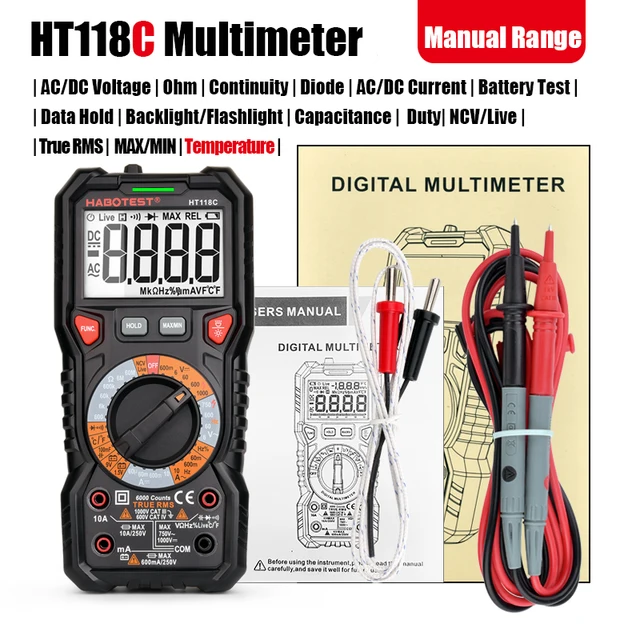

HABOTEST HT118 Series Digital Multimeter

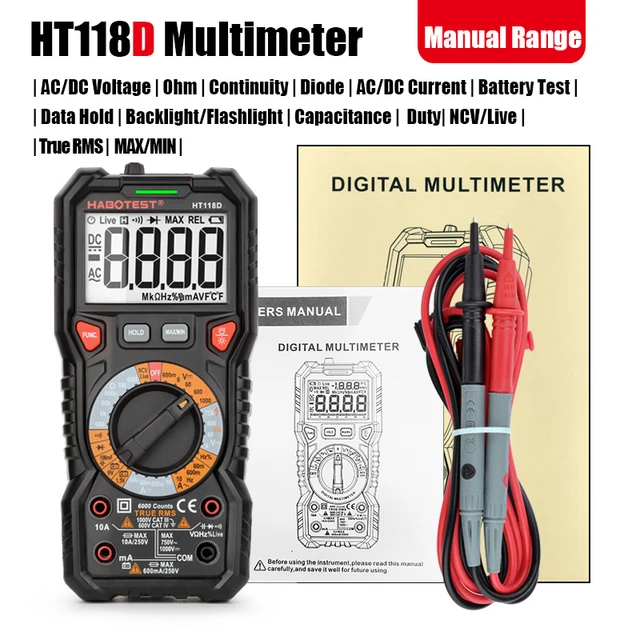

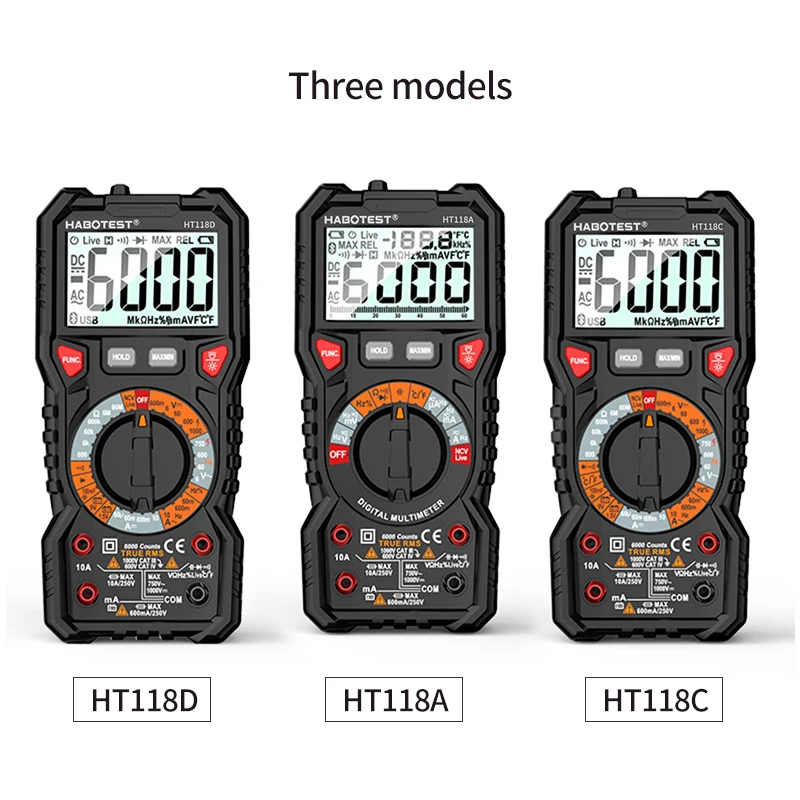

HT118A: Auto RangeHT118C: Manual rangeHT118D: manual range, without temperature measurement





















FAQ
Q: What is a two-color backlight?
A: When the voltage is higher than 80V or the current is higher than 1A, the screen will turn orange, which will alert the user to “high voltage danger!”

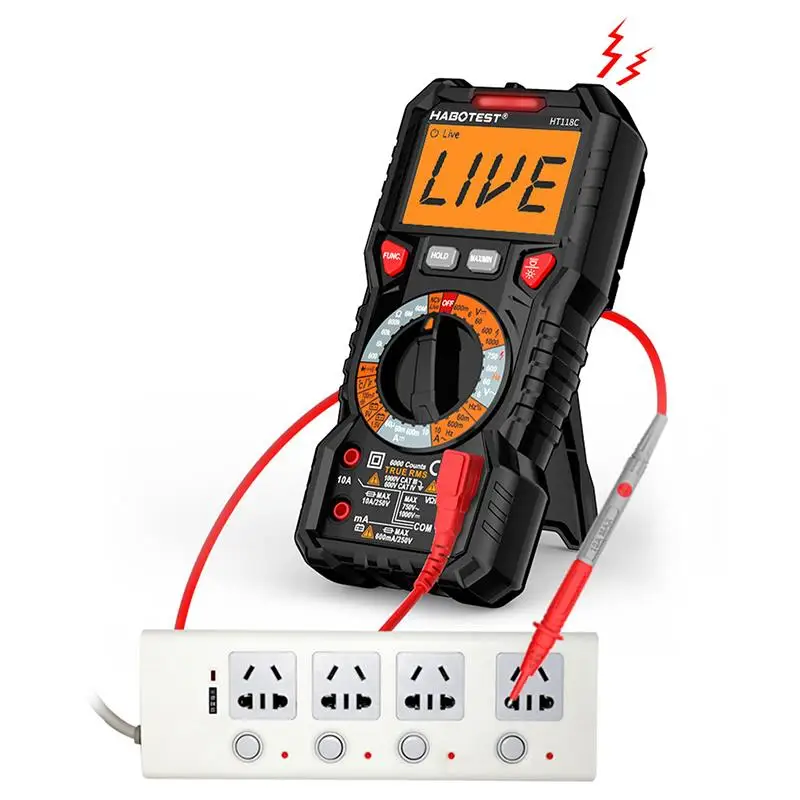

Q: What is the NCV indicator
A: The NCV indicator is for the user to more intuitively separate the zero-fire line:When the meter senses the zero line, the indicator light turns greenWhen the meter senses the fire line, the indicator light turns red and the screen turns orange.
Q: What is the probe jack indicator?
A: This is for the convenience of beginners to accurately insert the probe into the corresponding probe jack.The indicator light will automatically illuminate in the corresponding jack according to the position where the dial stays.
Brand Story
HABOTEST is a newly established company. The founder of the company is the former CEO of PEAKMETER, Mr.Yang. Existing products: HT100 non-contact voltage detector, HT106 series socket tester, HT113 series small digital multimeter, HT650 series digital multimeter, The HT118 series digital multimeter is a recently launched product.

Look forward to the launch of our products one by one!
