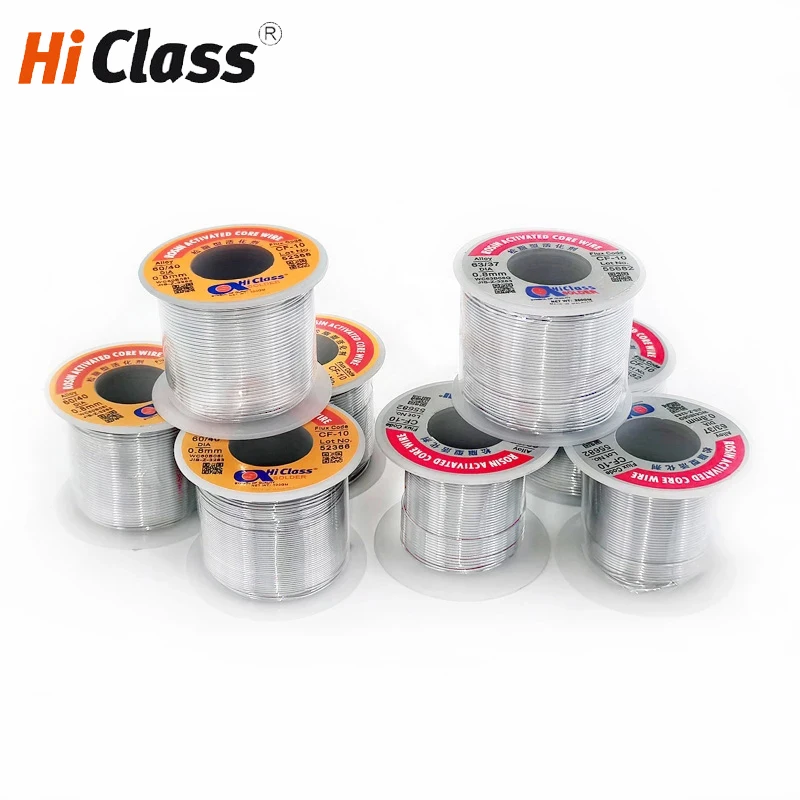

Asahi quality Hiclass Solder Wire Tin 63/37 60/40 soldering Low melting 0.5mm 0.8mm 1.0mm 1.2mm 2.0mm Rosin Core Flux1.8%~ 2.4%

Welding Wires>>>Tools

Brand Name hiclass

Certification CE

Certification TGA

Origin CN(Origin)

Diameter 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm

Model Number HI-60

Weight 50g, 100g 200g, 250g

Application rosin core solder

Material Tin

Flux Content 1.8% to 2.4%

Solder Wire 63/37

Wire Tin 60/40

Name Welding Wire

Ships From

China

Russian Federation

Diameter

60 40 100g 0.5mm

60 40 100g 0.8mm

60 40 100g 1.0mm

60 40 100g 1.2mm

60 40 200g 0.5mm

60 40 200g 0.8mm

60 40 200g 1.0mm

60 40 200g 1.2mm

63 37 100g 0.5mm

63 37 100g 0.8mm

63 37 100g 1.0mm

63 37 100g 1.2mm

63 37 250g 0.5mm

63 37 250g 0.8mm

63 37 250g 1.0mm

63 37 250g 1.2mm

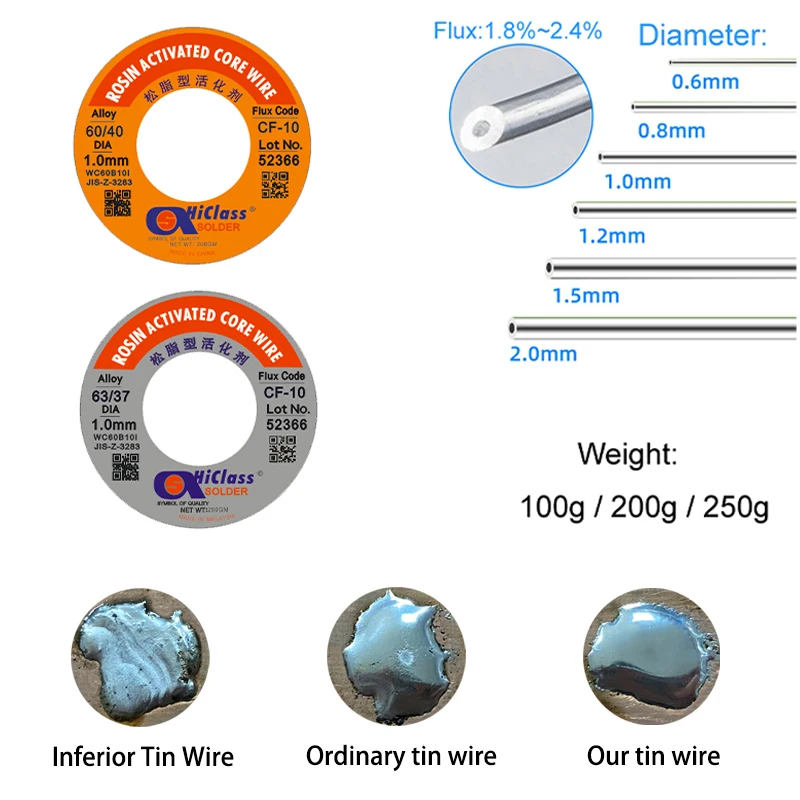

How to judge welding wire quality? Good welding wire generally has several characteristics：

1.The solder joints are shiny.

2.Less welding residue.

3. Less smoke generated during welding.

Hiclass Solder Wire Tin 63/37 60/40 soldering Low melting 0.5mm 0.8mm 1.0mm 1.2mm 2.0mm Rosin Core Flux1.8%~ 2.4% Asahi quality

1. High Quality Rosin Core For Electrical Soldering, Flux Impregnated Core

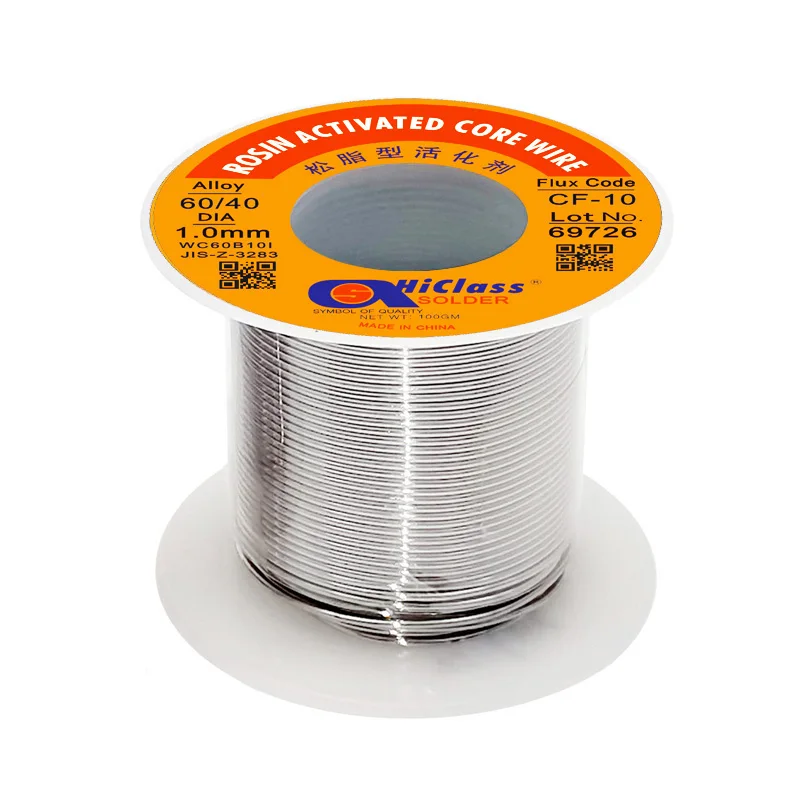

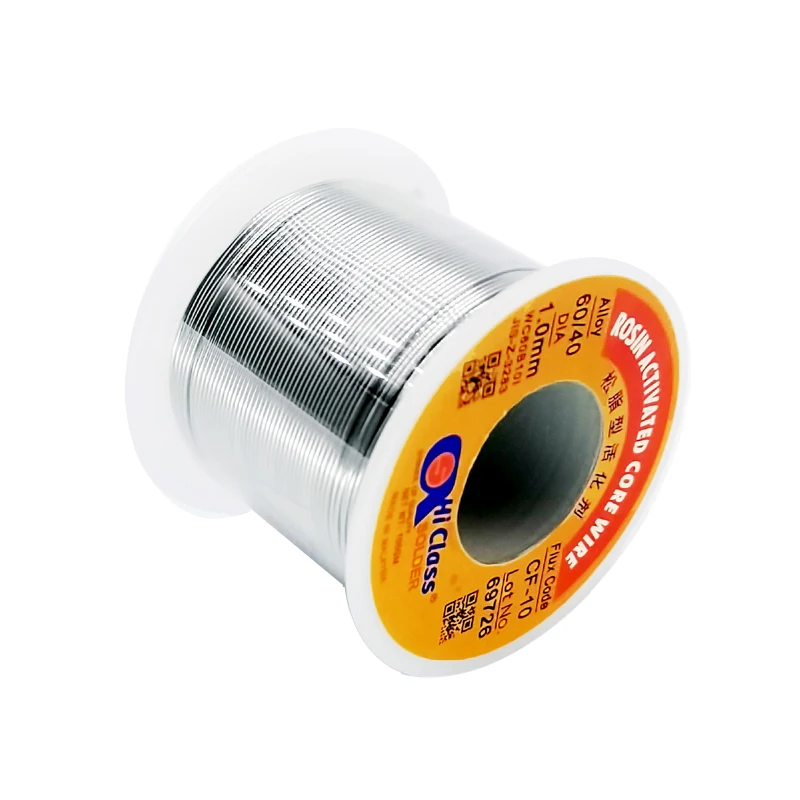

2. , Composition: Tin 60% , Rosin Core with 1.8-2.4% Non-Corrosive Flux.

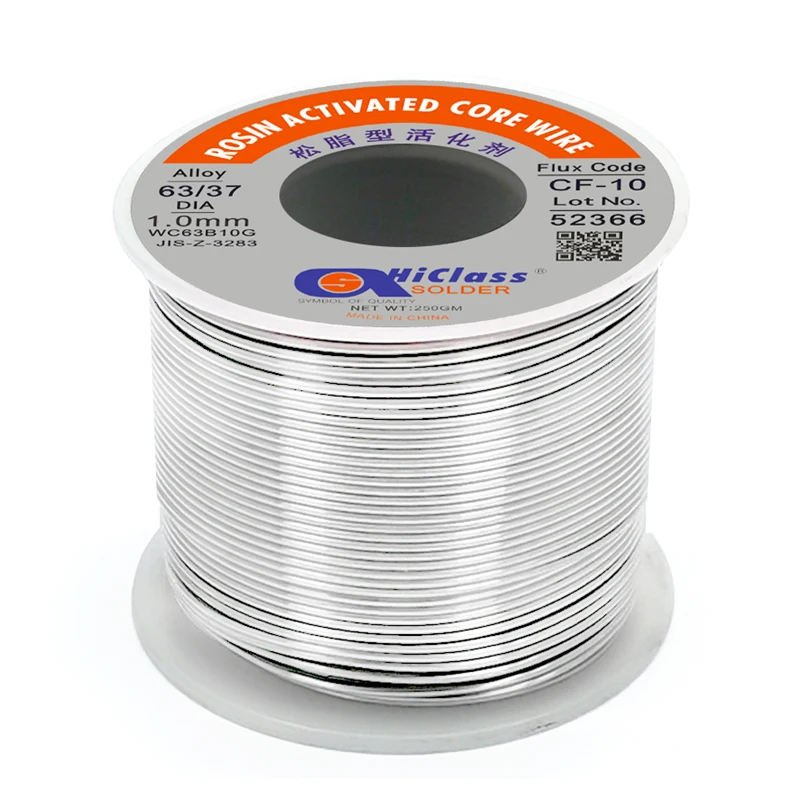

3.Composition: Tin 63% , Rosin Core with 1.8-2.4% Non-Corrosive Flux.

4. Diameter:0.5mm/0.6mm/0.8mm/1.0mm/1.5mm/2.0mm

5. Low Melting Temperature Point: 175C/347C, Easy To Soldered, Flows Well and Smoothly, Fast Soldering And Strong Bonding

6. Packaging: Coil On Reel, 45mm Dia x 45mm H. Gross Weight: 100g, 200g, 250g

7. Applications: Compatible With All Soldering Irons/Guns, Great For Automotive, Industrial, DIY Projects, Electronic/Electrical Soldering and Repair, Home Improvement, Circuit Board, Computer Mother Board, Cell Phone, Toys and more.
