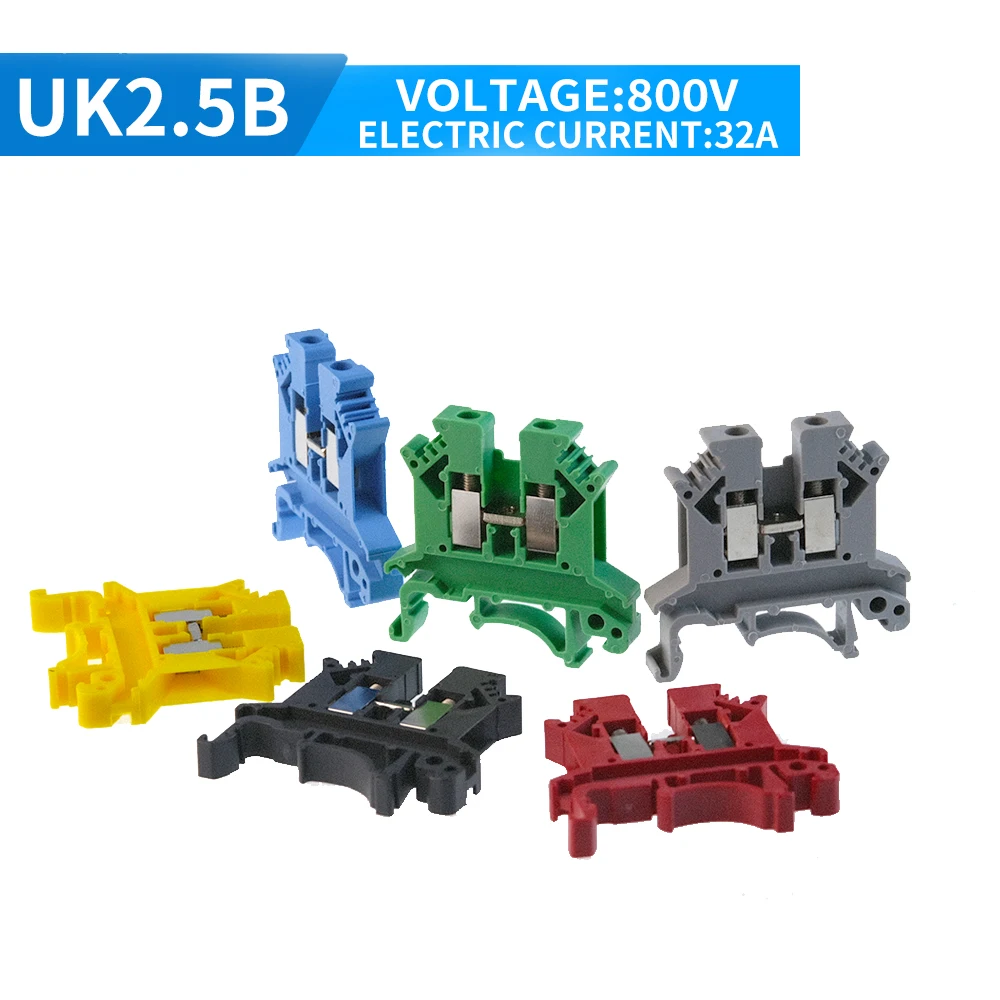

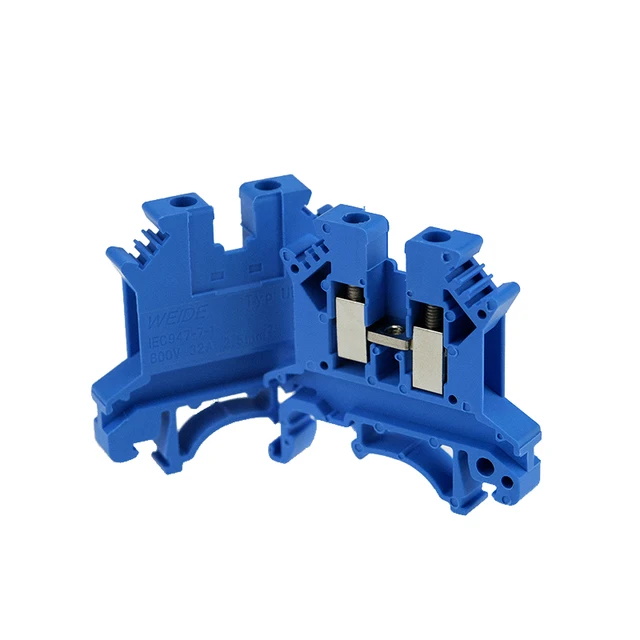

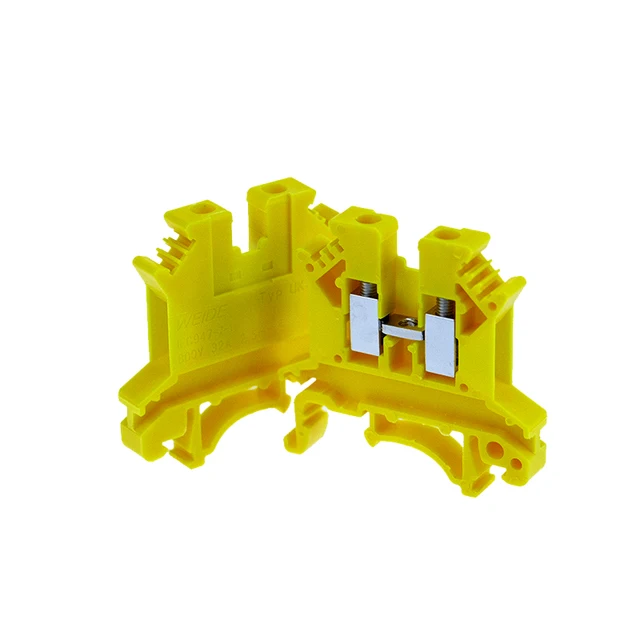

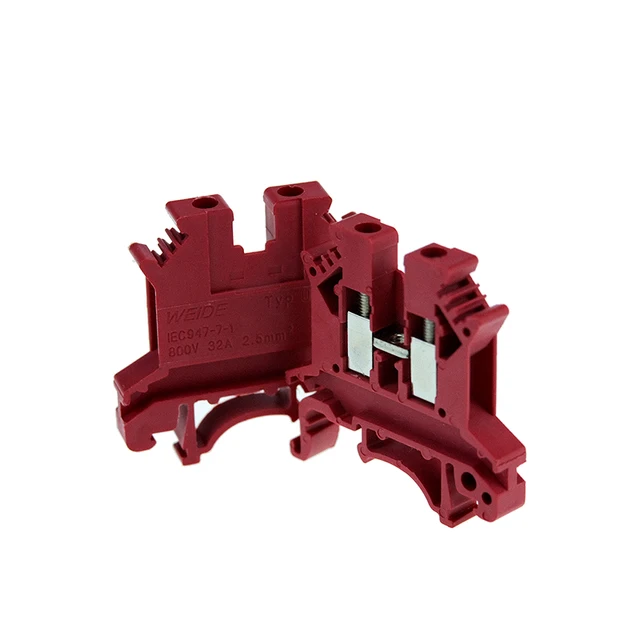

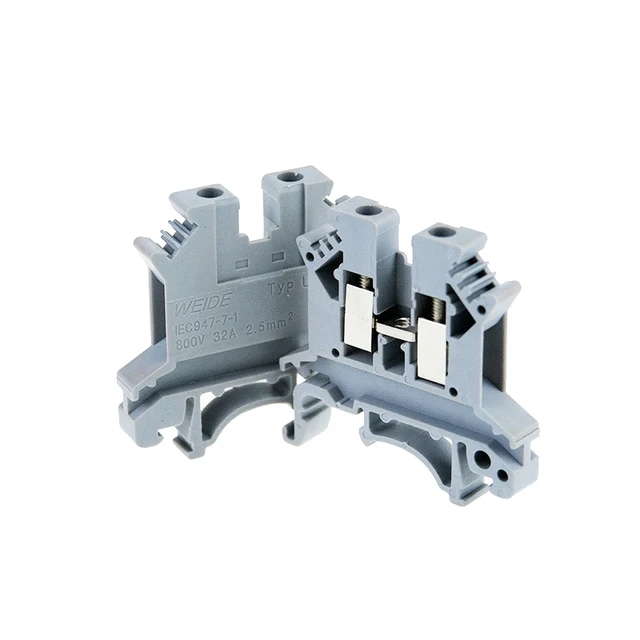

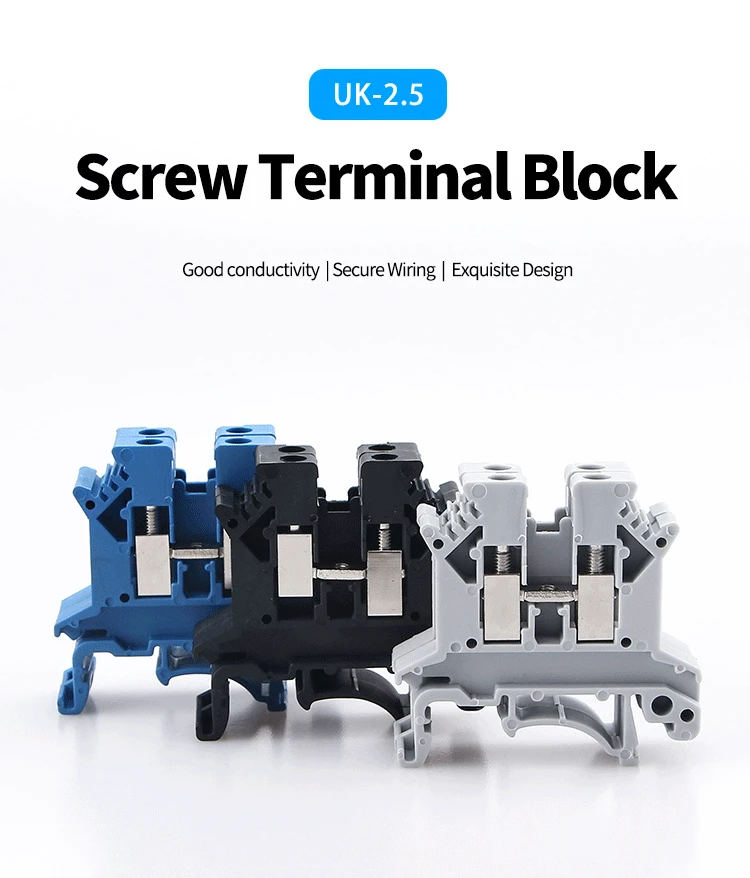

10Pcs Din Rail Terminal Block UK-2.5B Wire Electrical Conductor Universal Connector Screw Connection Terminal Strip Block UK2.5

Connectors & Terminals>>>Home Improvement

Brand Name W.DE

Certification CE

Certification RoHS

Origin CN(Origin)

Type Screw

Number of Contacts 1 - 10

Model Number UK 2.5B

Conductor Size 24-12AWG

is_customized Yes

Usage Distribution Panel

Application Electrical wire conductor

Connection way Screw

Mounting Type Din Rail

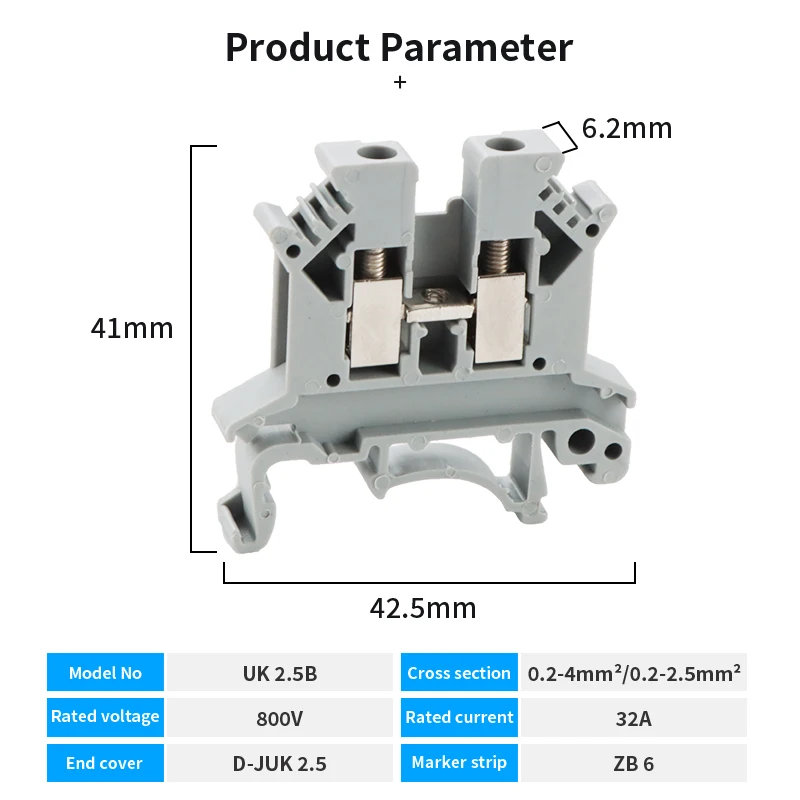

Size L/H/W 42.5/41/6.2

Current 32A

Voltage 800V

Cross section solid cable 0.2-4mm2

Cross section soft cable 0.2-2.5mm2

item1 Terminal Block

item2 Universal Compact Wire Wiring Connector

item3 Din Rail Terminal Block Conductor

item5 Terminal block connector

item6 Screw terminal block

item7 Terminal eletrico

item8 Terminal block strips

Color

     If you need more types , please feel free to contact meon Aliexpressor Email:hugh@xuchendq.comWhatsapp:0086-18367781100More contact information is at the bottom ...Accessories(Click the picture to buy)

End coverD-UK2.5B

Fixed BridgeFBI 10-6Insertion bridgeEB 10-6Marker stripZB6End stopE-UK

Marker CarrierB1/B2Marker CarrierKLM-AGrouping boardATPGround terminal blockUSLKG2.5Din Rail

Type No.

Details

Accessories

UK 2.5B

800V/32A0.2-4mm2/0.2-2.5mm2L42.5/H41/W6.2 mm

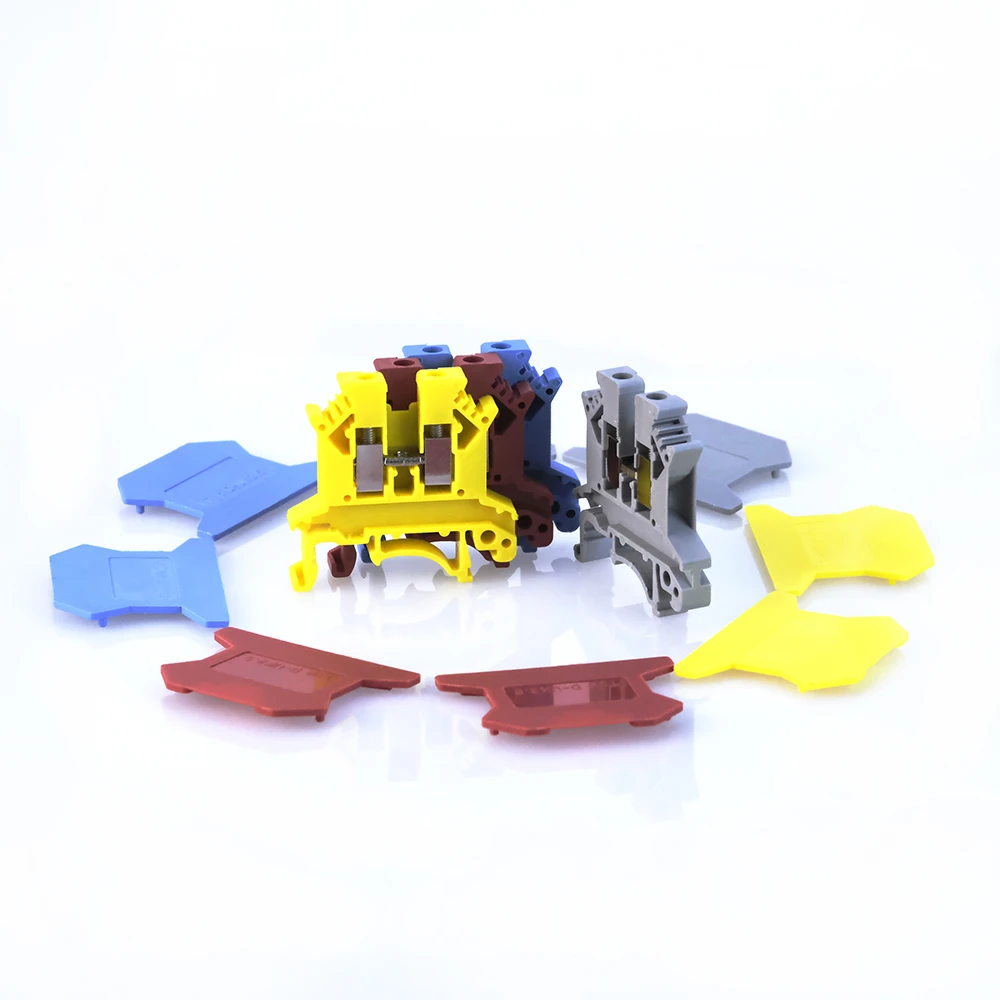

End cover:D-UK 2.5

Fixed bridge:FBI 10-6

Insertion bridge:EB 10-6

Marker strip:ZB6

TECHNICAL PARAMETERS

Model Number

UK 2.5B

Color

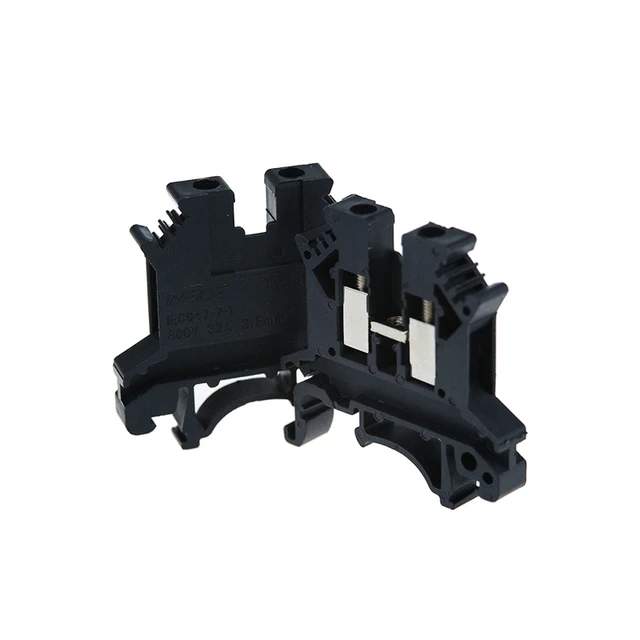

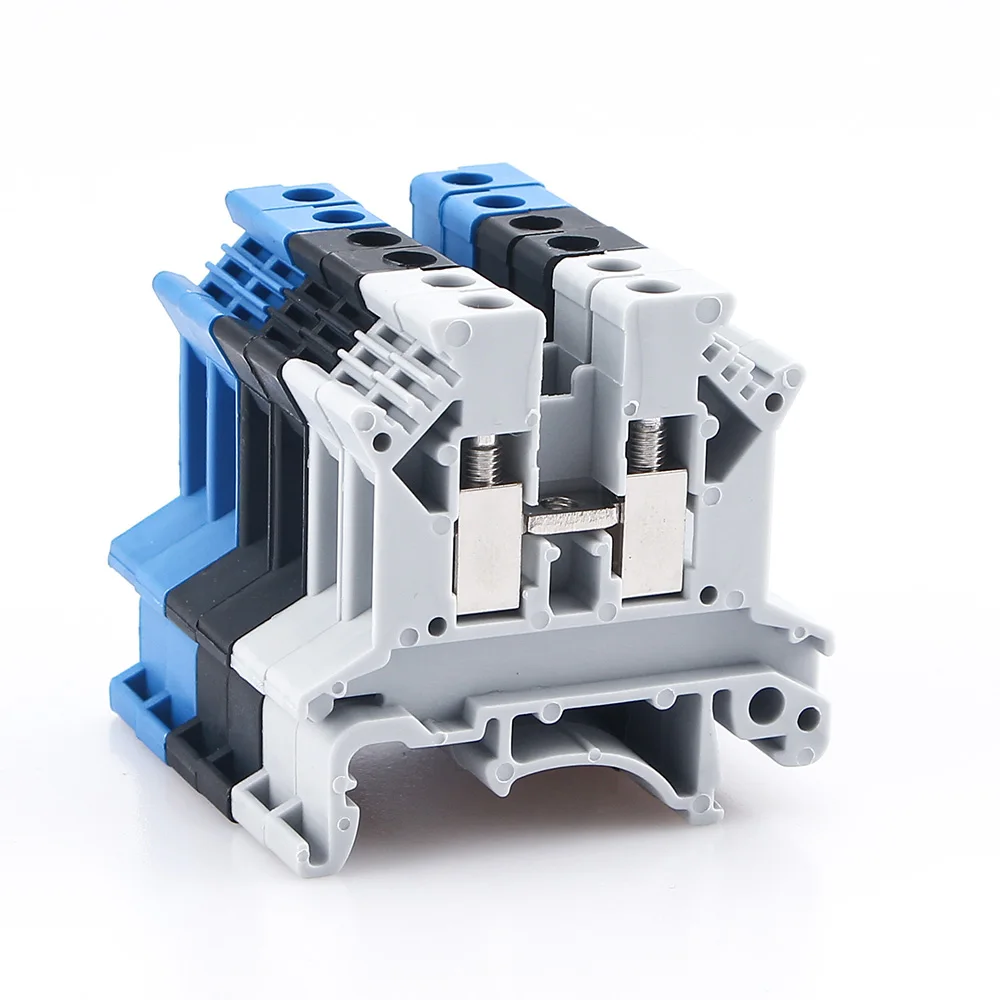

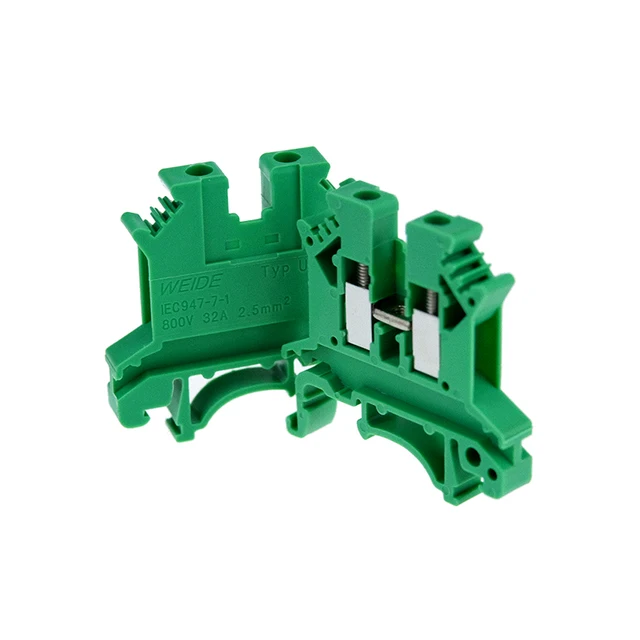

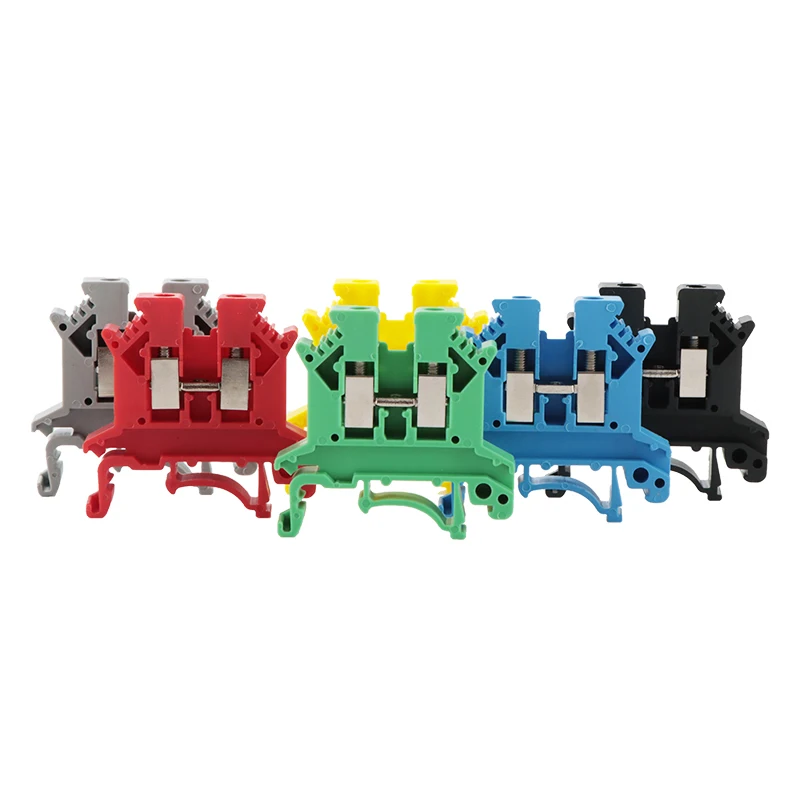

Grey, Blue, other color can be customized

Length/Height/Wide (mm)

42.5/41/6.2

Connection method

Screw connection

Material

Nylon PA66

Rated Voltage/Current

800V/32A

Cross section, solid/soft Cable

0.2-4 mm2 / 0.2-2.5 mm2

Conductor Size

24-12 AWG

Mounting Type

NS 35/7.5

Recommend

Type No.

Cross section solid/soft Cable

Voltage/Current


Click it

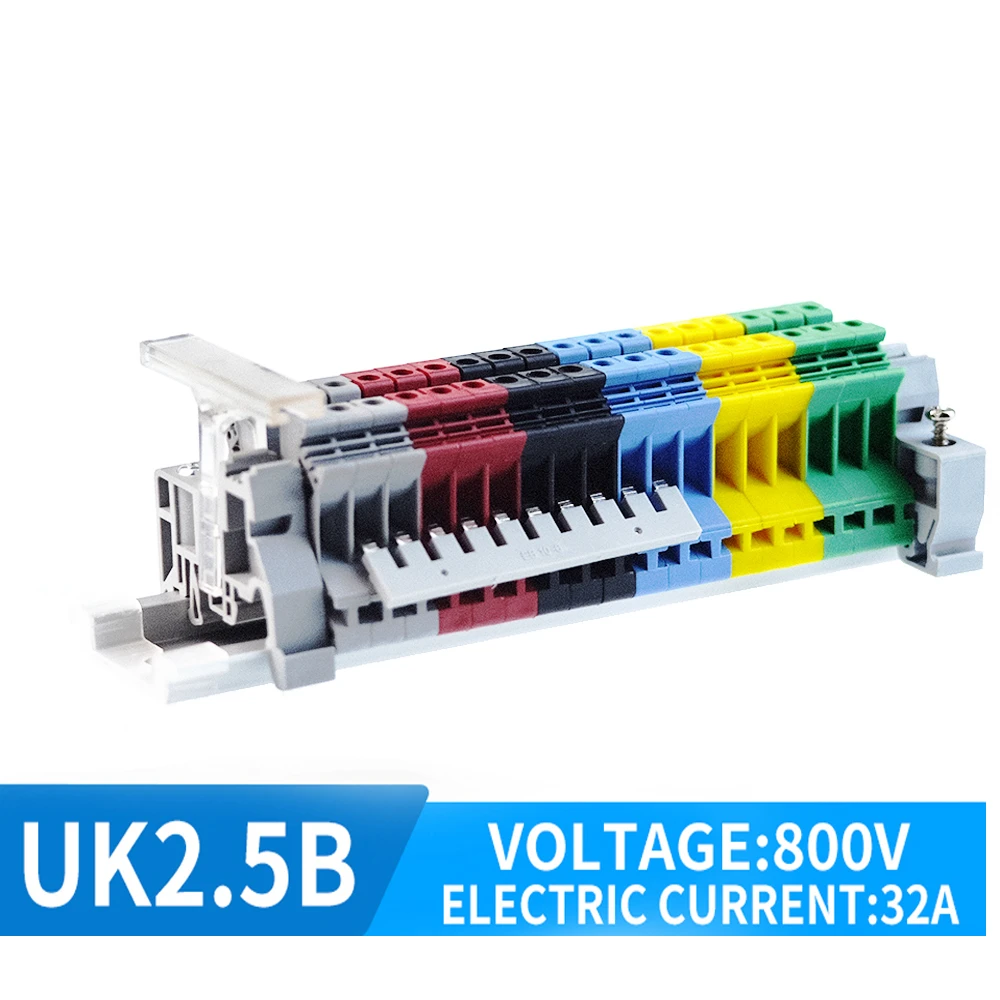

UK2.5B

0.2-4mm²/0.2-2.5mm² L42.5/H41/W6.2 mm

800V /32A

Buy

ST2.5

0.2-4mm²/0.2-2.5mm² L49/H35.5/W5.2 mm

800V /31A

Buy

PT2.5

0.2-4mm²/0.2-2.5mm² L48.5/H35.5/W5 mm

800V /31A

Buy

PTTB2.5

0.14-4mm²/0.14-2.5mm² L68.8/H46/W5.2 mm

500V /22A

Buy

UK5-HESIfuse holder

0.2-4mm²/0.2-4mm² L73.5/H56.5/W8.2 mm

800V /6.3A

Buy

DIKD1.5

0.2-4mm²/0.2-2.5mm² L73/H54.5/W6.2 mm

250V /32A

Buy
