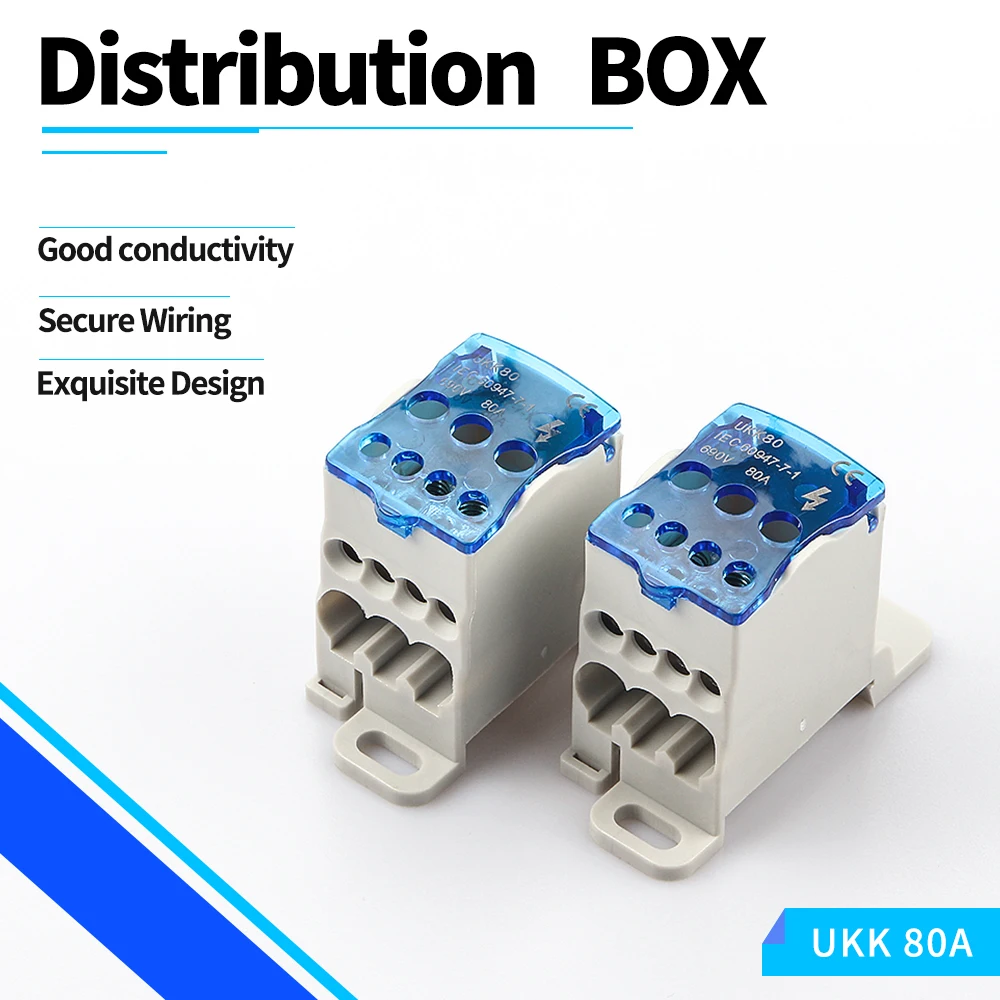

UKK 80A Din Rail Distribution Box Block One In Multiple Out Power Universal Electric Wire Connector Junction Box Terminal Block

Connectors & Terminals>>>Home Improvement

Brand Name W.DE

Certification CE

Certification RoHS

Origin CN(Origin)

Type Screw

Number of Contacts 1 - 10

Model Number UKK 80A

Conductor Size 1- 5 AWG

is_customized Yes

Usage Electrical Wire

Apply Distribution Cabinet

Connection way Screw

Item1 One in many out

Item2 Din rail

Item3 Junction box

Item4 Terminal block

Item5 Electric wiring

Item6 Wire connector

Item7 Universal distribution box

Item8 UKK

Item9 UKK 80A

Item10 80A

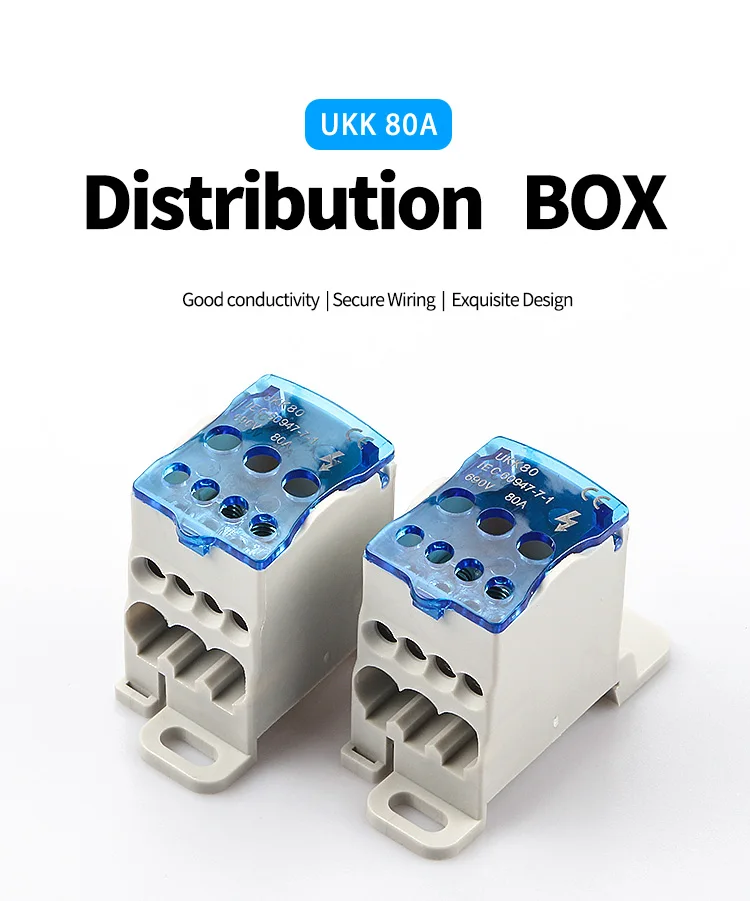

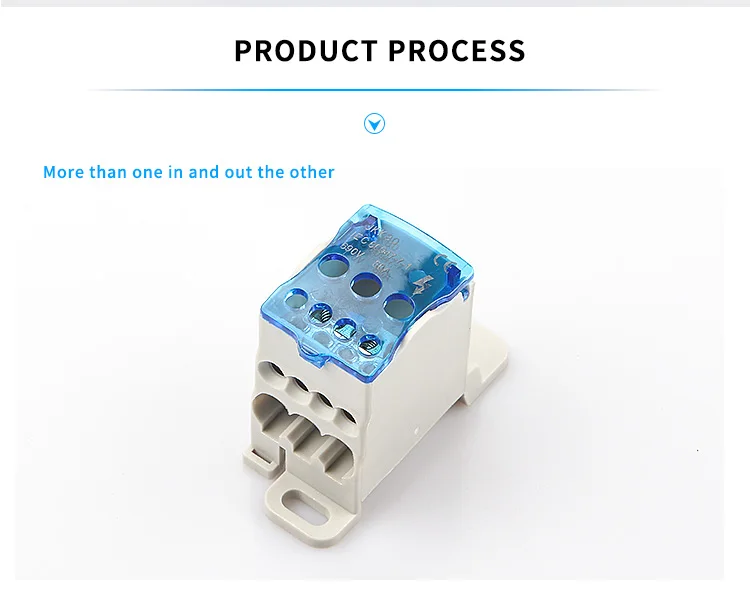

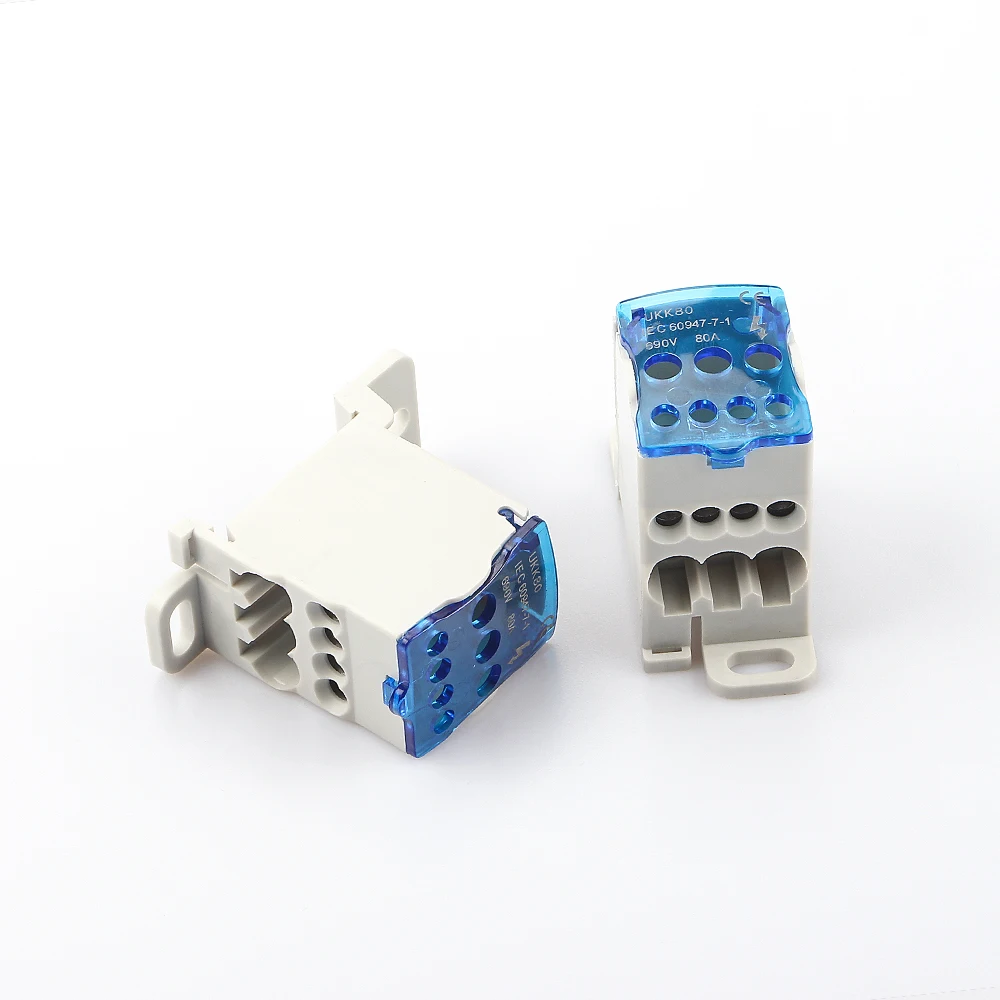

     Power Distribution Terminal Block Box on Din Rail

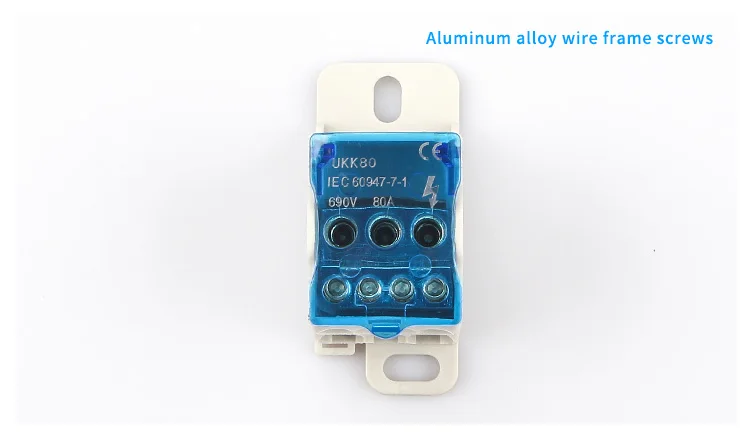

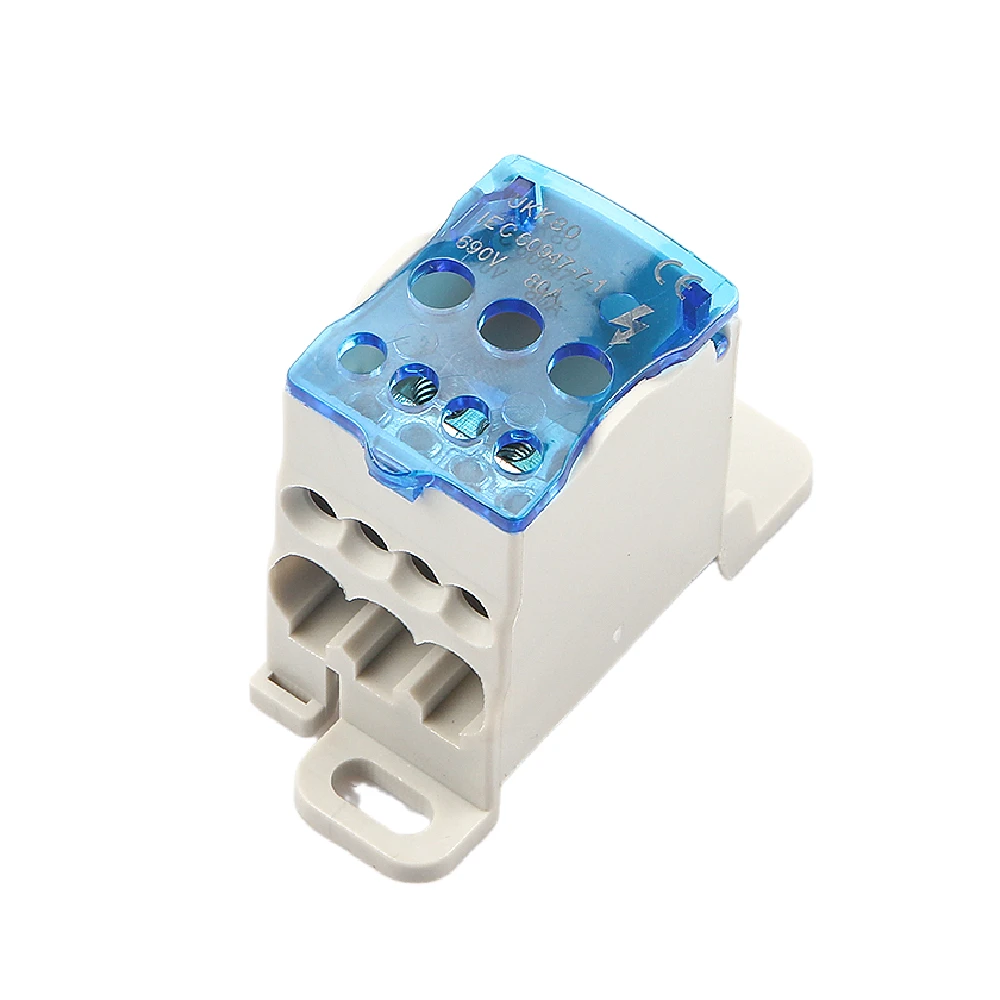

UKK80A

690V/80A

1 input 6 output

L65/H47/W29.5 mm

Input:1 x 16mm2;

Output:4 x 6mm2;2 x 16mm2;

BUY

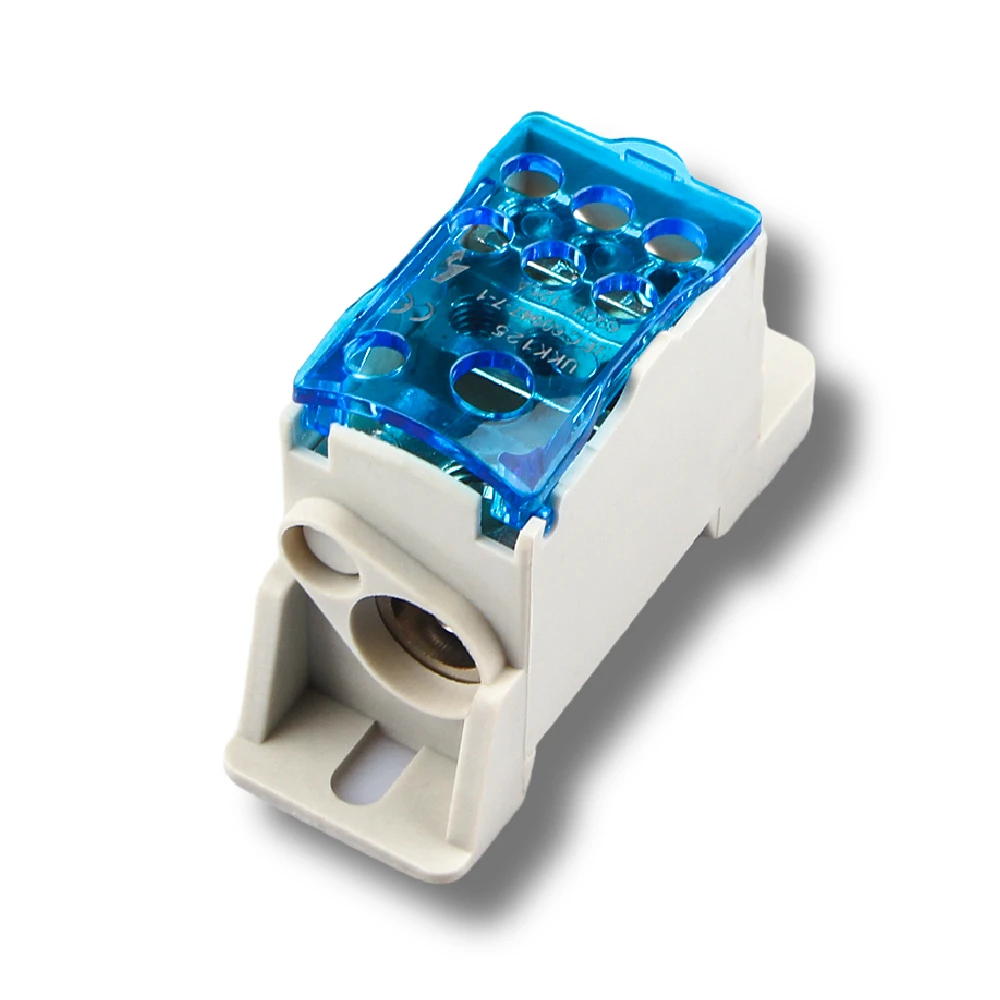

UKK125A

690V/125A1 input 6 outputL74/H47/W29.4mm

Input:    1 x 16mm2;1 x 35mm2;Output:6 x 16mm2;

BUY

UKK160A

690V/160A1 input 6 outputL74/H47/W29.4mm

Input:            1 x 70mm2;         1 x 16mm2;Output:6 x 16mm2;

BUY

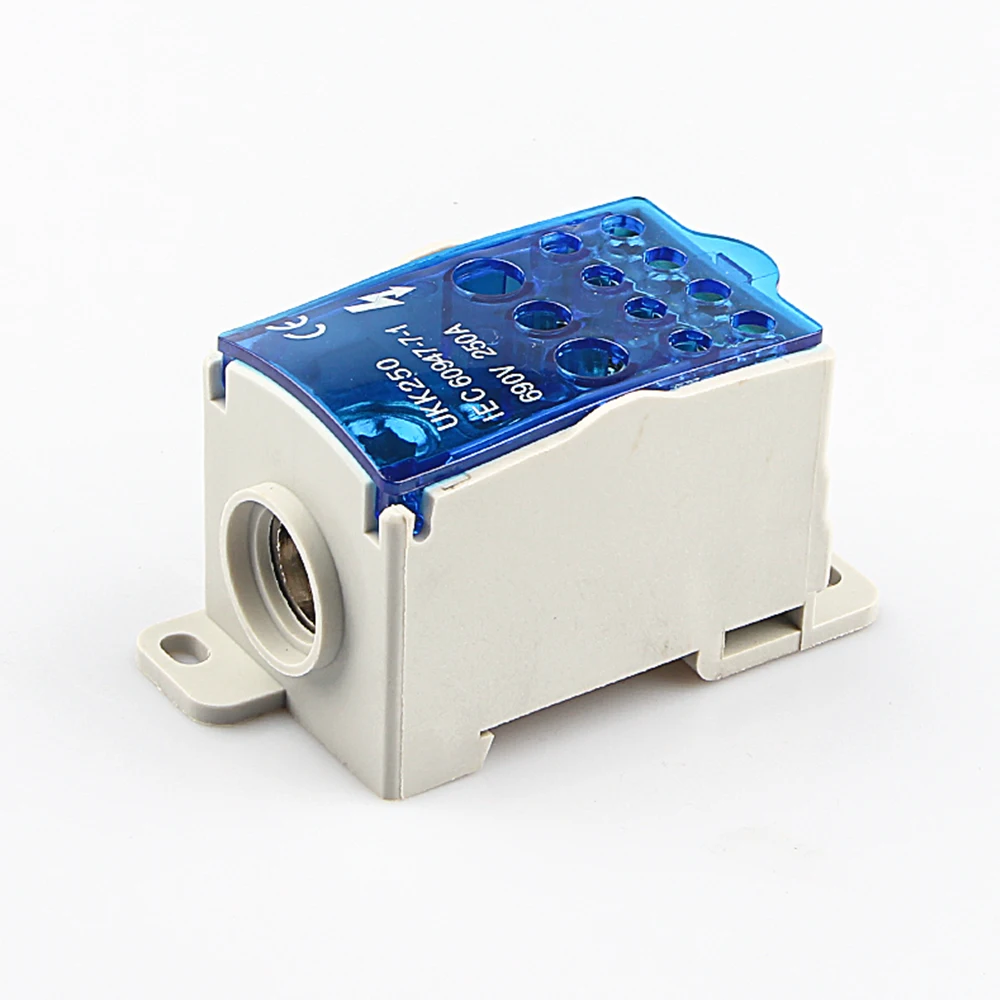

UKK250A

690V/250A1 input 11 outputL96/H50/W47.8mm

Input:     1 x 120mm2;Output:2 x 35mm2;        5 x 16mm2;         4 x 10mm2;

BUY

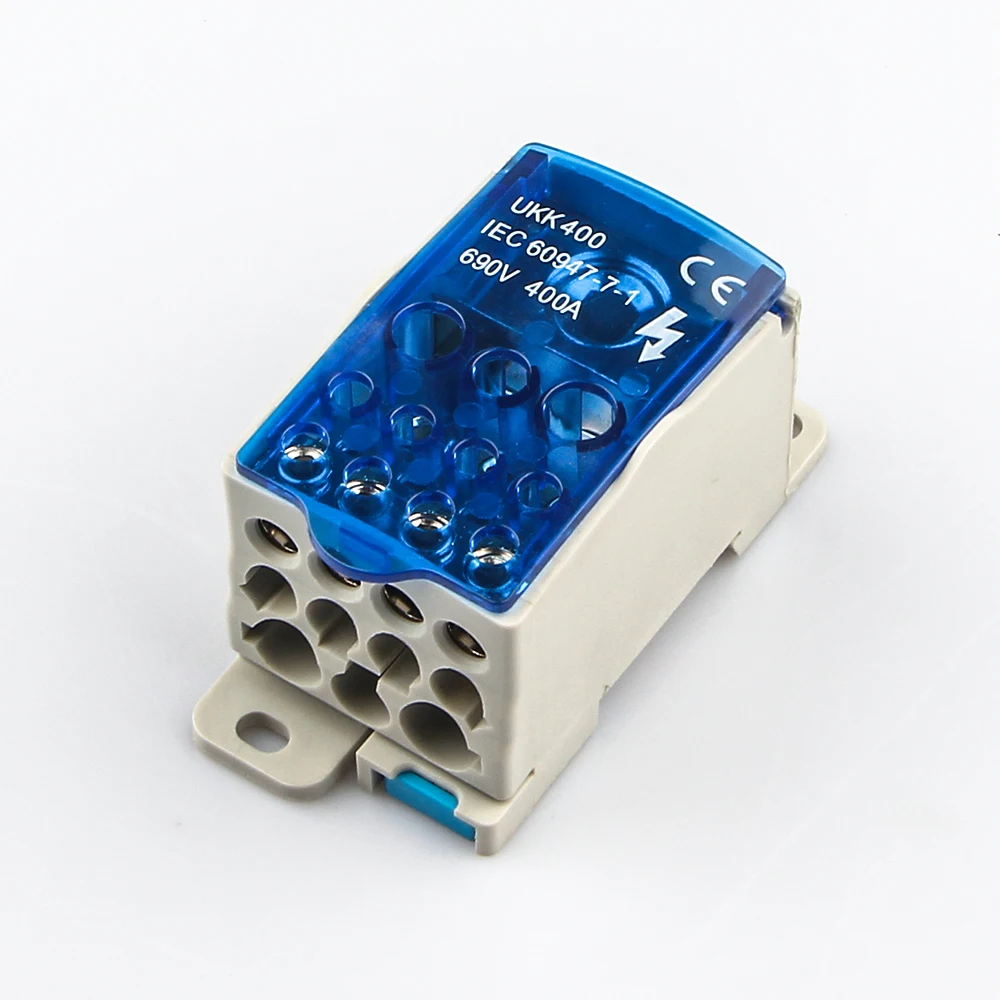

UKK400A

690V/400A1 input 11 outputL96/H50/W47.8mm

Input:    1 x 185mm2;Output: 2 x 35mm2;         4 x 10mm2;5  x 16mm2;

BUY

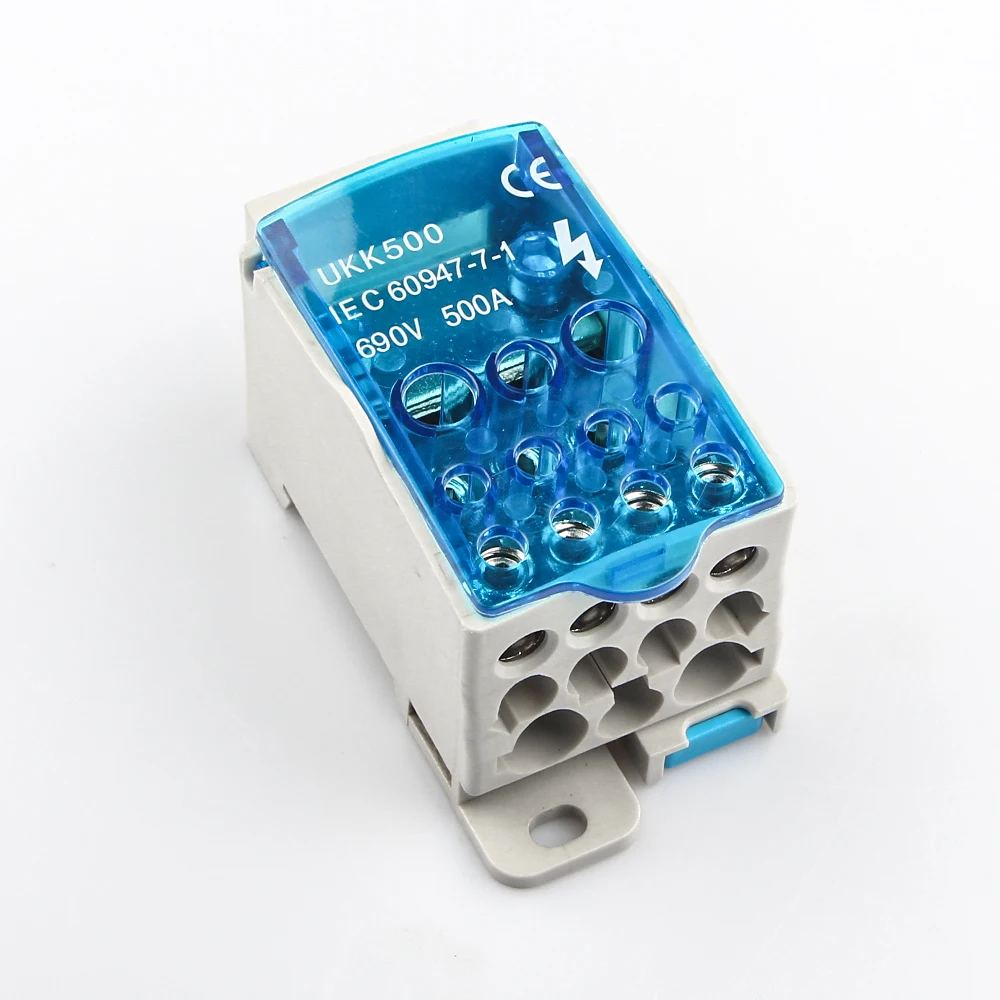

UKK500A

690V/500A1 input 11 outputL96/H50/W47.8mm

Input:     3 x 15mm2;       8 x 24mm2;Output:2 x 35mm2;4 x 10mm2;5 x 16mm2;

BUY

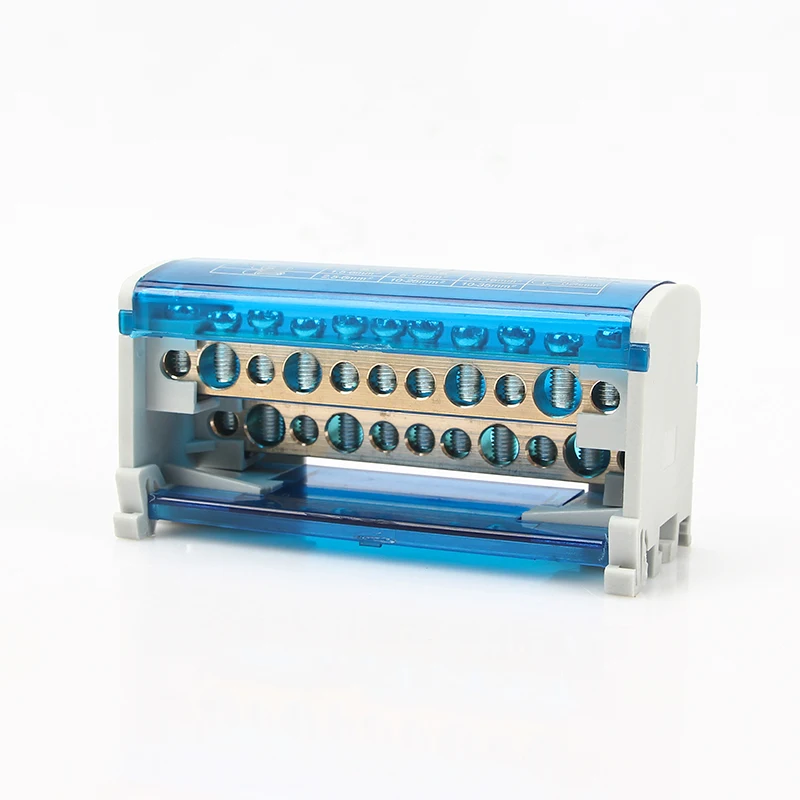

H207

500V/125ACross section: 35mm⊃2;L67/H50/W45 mm

Hole Qty:  2 x 7Brass Bar : 6.5 x12mm

BUY

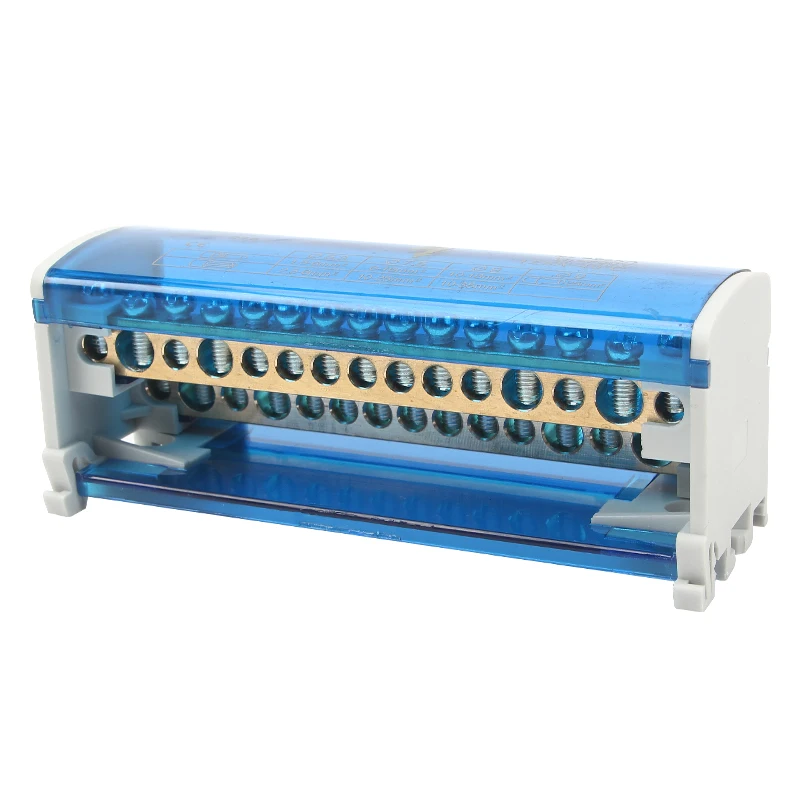

H211

500V/125ACross section: 35mm⊃2;L100/H50/W45 mm

Hole Qty:  2 x 11Brass Bar : 6.5 x12mm

BUY

H215

500V/125ACross section: 35mm⊃2;L134/H50/W45 mm

Hole Qty:  2 x 15Brass Bar : 6.5 x12mm

BUY

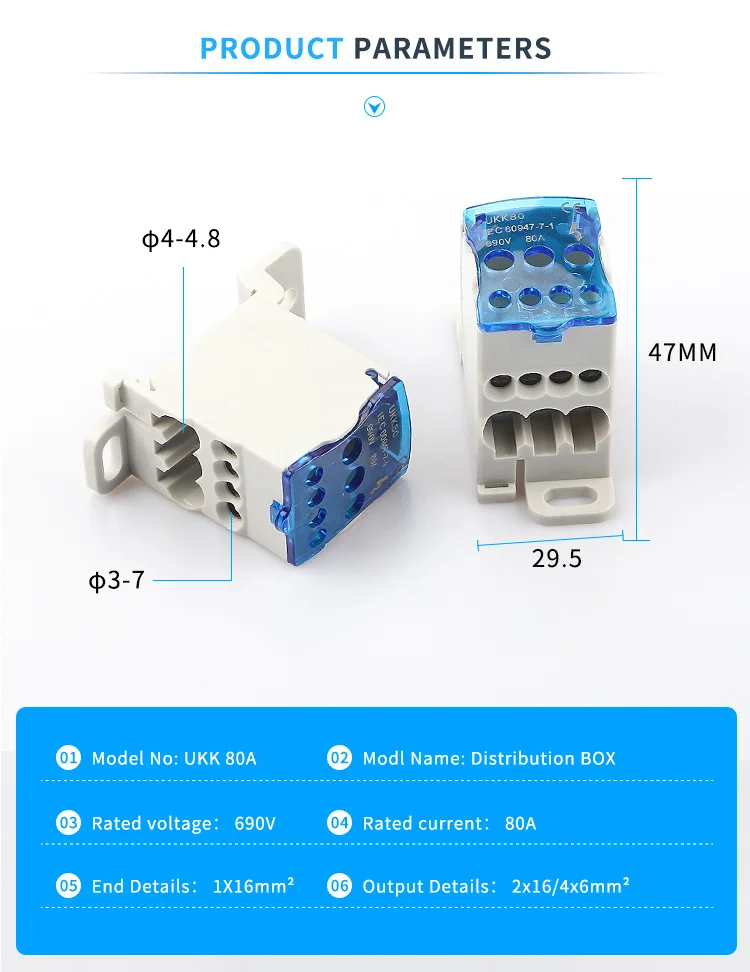

TECHNICAL PARAMETERS

Model No.

UKK 80A

Color

Blue and Gray

Length/Height/Wide (mm)

29.5/47/65

Connection method

Screw connection

Material

Flame resistant Nylon PA66,  brass conductor

Rated Voltage/Current

690V/80A

Entry Specification

1X16 mm2;

Output Specification

2X16/ 4X16 mm2;

Mounting Type

DIN Rail NS 35

Standard

IEC 60947-7-1

Certification

CE/RoHS/CQC/ISO 9001
