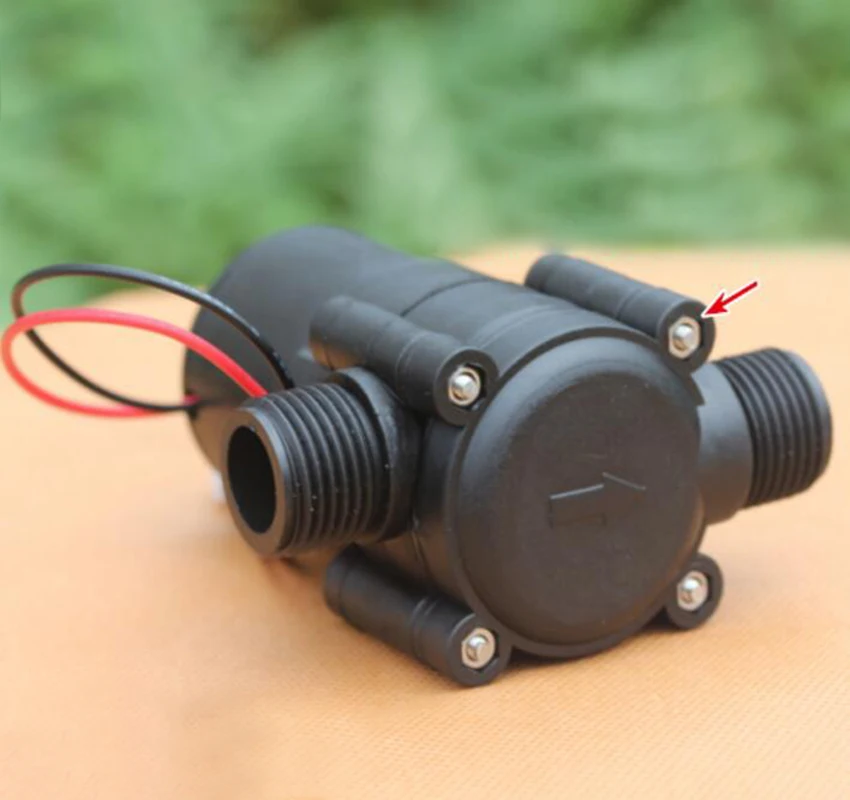

Newest DC Hydroelectric power Hydro Generator Tap Flow Micro-hydro Piped water generator Pipeline water charger ветрогенератор

Generators>>>Home Improvement

Brand Name ZJMZYM

Certification None

Origin CN(Origin)

Model Number F40

is_customized Yes

Shaft Material Stainless steel

Type Wind Power Generator

Mounting Base Without Mounting Base

product number LB0343

water pressure ≤1.75 MPa

the output current 128~260 MA

Outer diameter 20mm

inner diameter 13mm

 Features:1.Product model: F40 Technical parameters:2.Applicable water pressure: ≤1.75 MPa3.Flowing water temperature: 0～80 ℃4.Ambient temperature: -25～110 ℃5.Flow range: 1.5～20 l/min (pressure 0.05-0.2mpa)6.Output current: 128~260 MA/0.1 K load7.Output voltage: 3.5±0.2V (flow rate 2 l/min)8.Maximum output: 4.5±0.2V (flow rate 10 l/min)9.Starting flow: 1 l/min (1±0.2V)10.Shell material: nylon glass fiber, polyoxymethylene11, the output port when testing: open12.Installation method: Install in the direction of the arrow, household water pipe 1/213. Outer diameter：20mm inner diameter ：13mm
