12V color screen Bluetooth5.0 MP3 Decoding Board Module Wireless Car USB MP3 Player TF Card Slot / USB / FM / Module

HiFi Players>>>Consumer Electronics

Brand Name ARuiMei

Origin CN(Origin)

External Memory No

Audio Format Support MP3, WAV

Audio Format Support FLAC

Audio Format Support mp3

Audio Format Support WAV

Certification None

Balanced Out Yes

DSP 5336

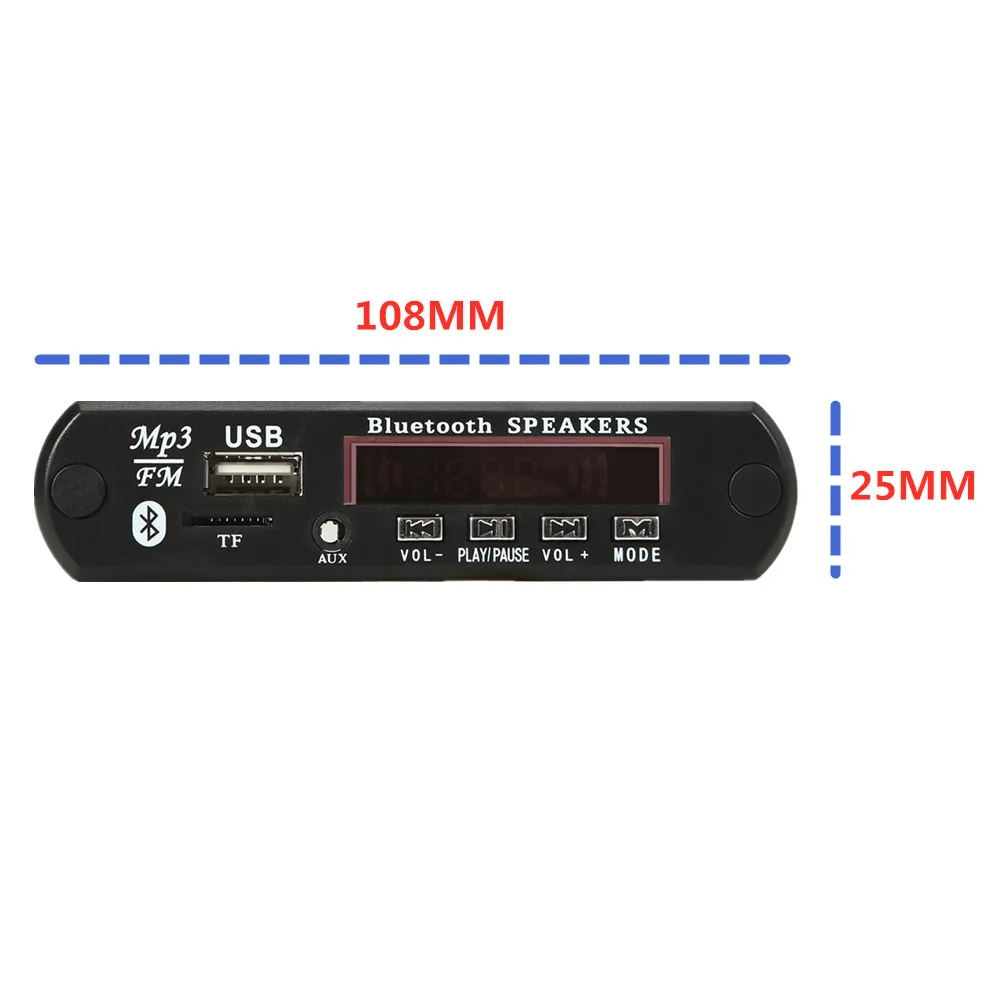

Dimensions (WxHxD) 108*25mm

Battery Specification External Power

Function Voice Recorder

Function FM Radio

Function bluetooth

Bluetooth Yes

Battery Life > 20 hours

Model Number 012B

Style Car MP3

Operation Mode Touch Screen + Remote Control

Body Material plastic

Package Yes

Supports FM Yes

Supports Recording Function No

Signal Noise Ratio ≥89dB

Feature 1: mp3 module

Feature 2: Bluetooth 5.0

DC 6V-12V

Color

Ships From

China

Tips:  Please pay attention to the voltage requirements and the position of the positive and negative poles of the power supply when buying and using this product to avoid burnout. Characteristic:1. Support mp3 / wma / WAV / FLAC / ape;2. Support Bluetooth 5.0;3. Digital tube display;4. Support USB / TF (SD) / Bluetooth / FM / aux and other modes;5. Power off memory function;6. Support folder playing;7. Support 5-10m far infrared remote control operation;8. Support external audio input line input (aux);9. Support radio frequency modulation, receiving frequency band (87.5mhz- 108.0mhz);10. Button: four button multi direction control, vol - / Auto / vol + / mode;Operation details:1.Vol - (previous song / volume reduction): in MP3 mode, short press of vol is the previous song and long press is volume reduction; in FM mode, short press can adjust a radio station number; in Bluetooth mode, short press is the last song of Bluetooth and long press is volume reduction.2. Automatic (play / pause): in MP3 state, short press Auto to play / pause; in FM state, short press to play / pause, long press to receive and save automatically; in Bluetooth function, short press to play / pause.3. Vol + (next song / volume increase): in MP3 mode, short press one song and long press to increase the volume; in FM mode, short press to adjust the radio number; in Bluetooth mode, short press to next song and long press to decrease the volume.4. Mode: USB / TF (SD) / FM / Aux / Bluetooth function switchingPackage content:1 *MP3 decoder board1 *remote control (no battery, no retail package)
